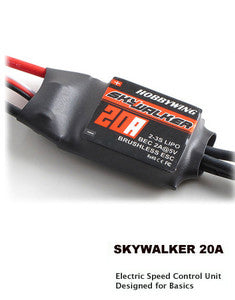

Skywalker 20A ESC

HWI80060010
This will be drop shipped from our vendor!
Skywalker 20A ESC

Features:

Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected

Throttle calibration funtion: Throttle range can be calibrated to be compatible with different transmitters.

User programmable.

Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.

Compatible with Lipo and NiMH battery.

Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.

Specifications:

Output: Continuous 20A, Burst 25A up to 10 seconds.

Input Voltage: 2-3S Lipo, 5-9 cells NiMH.

BEC: 2A / 5V Linear mode BEC.

Refresh rate of the throttle signal: 50Hz to 432Hz

Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.

1.6 Size: 42mm*25mm*8mm.
