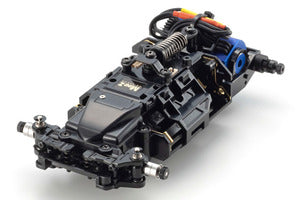

MR-03 EVO Chassis Set (W-MM / 5600 KV)

KYO32797
This will be drop shipped from our vendor!
MR-03 EVO Chassis Set (W-MM / 5600 KV)

First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and featured a separate receiver board that provided the flexibility of transmitter choice. Two years after its stunning debut, the MR-03 EVO lineup has been strengthened with a race-based chassis. Until now the speed range setting was KV8500 for wide chassis, but it has been reduced a level to KV5600. From the compatible receiver units : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from the Readyset. Perhaps the MR-03EVO chassis set's greatest advantage is that it can also be combined with a brushed motor (No.MZ9E, sold separately) to adapt to an even wider range of driving conditions.

Based on the MR-03VE PRO chassis, newly designed separate receiver cover and front upper arm mount make tread adjustment easier.

Receiver unit are planned for KYOSHO, KO, FUTABA and Flysky transmitters and can be attached/detached by removing receiver cover from the upper chassis.

Equipped with Ball Diff Set II that reduces weight of aluminum parts on the spur gear side and optimizes balance on the hub side. This is a must-have item and is used often in competition-level racing.

KYOSHO SPEED HOUSE brushless motor (5600KV) features a one-piece aluminum case that provides efficient heat dissipation.

Features:

First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.

Includes KYOSHO SPEED HOUSE XSPEED 56 brushless motor (5600KV).

I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.

Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.

Equipped with ball bearings and Ball Diff Set II. *Newly designed separate receiver cover and front upper arm mount make tread adjustment easier. *Compatible with optional parts for the MR-03 chassis.

Specifications:

Length 123.5mm

Width 70-76mm

Height 35mm

Wheelbase 98.0mm (L)

Tires (F/R) 25x8.5mm (sold separately)/25x8.5-11mm (sold separately)

Weight 135g (approx.)
